Commercial

The Parramatta Tapestry

Project Summary

January 2023 - Parramatta Square, Darcy St & Macquarie St, Parramatta NSW 2150

Project Summary
Project Summary
Project Summary
Project Summary
Project Summary
Project Summary
Project Summary
Project Summary
Project Summary
Project Summary
Project Summary
Project Summary

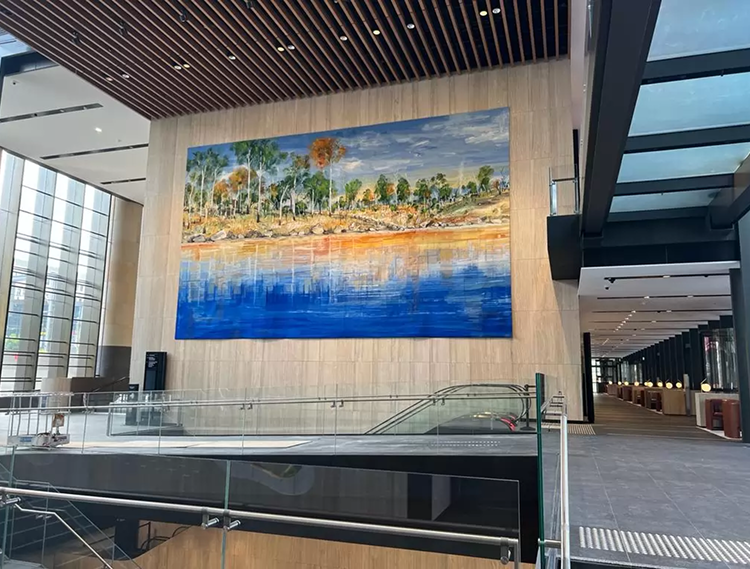

“The Parramatta Tapestry is a commissioned artwork produced by Chris Kenyon, installed in the 6 Parramatta Square atrium. The artwork depicts a luminous, dream-like landscape. The Parramatta Tapestry contains the stretch of the river displaying a particular section of riverbank which was the landing spot early explorers settled upon in Parramatta. The tapestry speaks to the natural beauty and abundance of the original landscape known to the Burramattagal people.”

Scope of Work

Pre-inspection site meetings with the client and all stakeholders

Detailed planning and coordination of works

Development of a safe and efficient lifting and installation method

Assessment of access options to minimise disruption and risk

Implementation of rope access and rigging techniques as the most suitable, non-invasive solution

JG Completed the Following

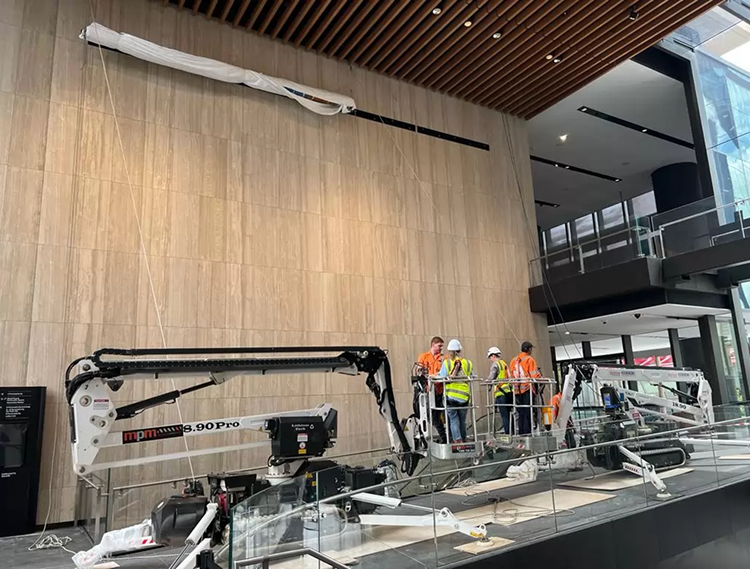

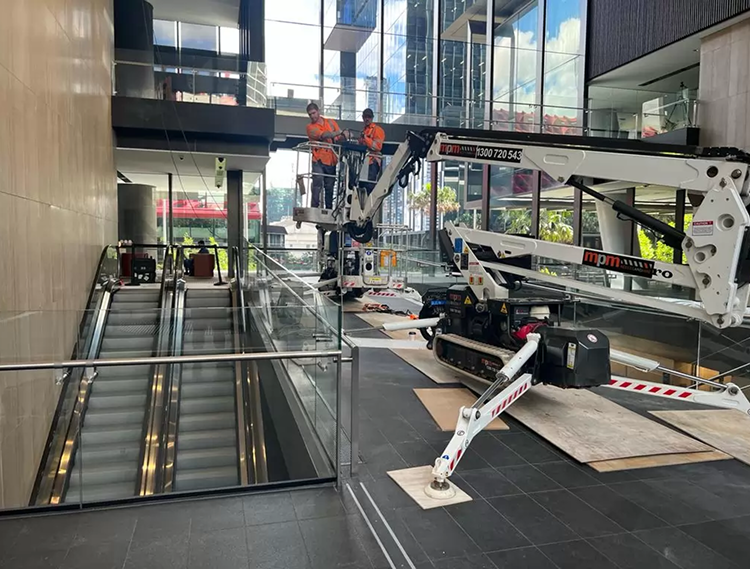

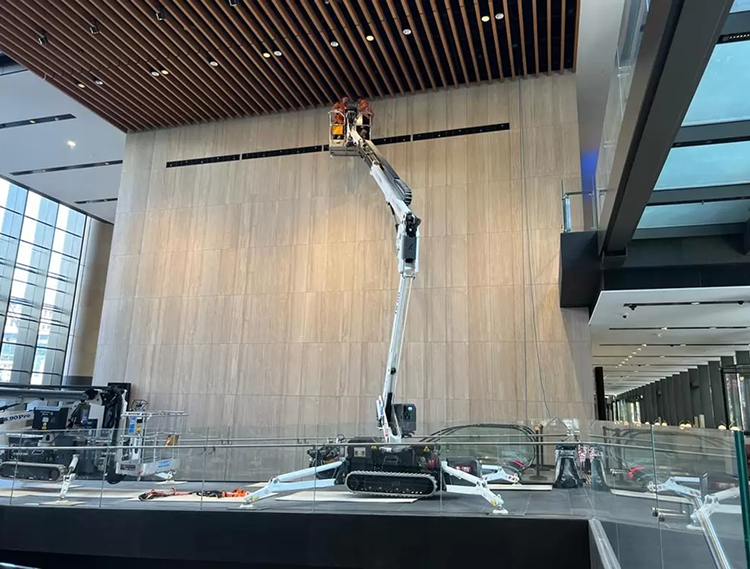

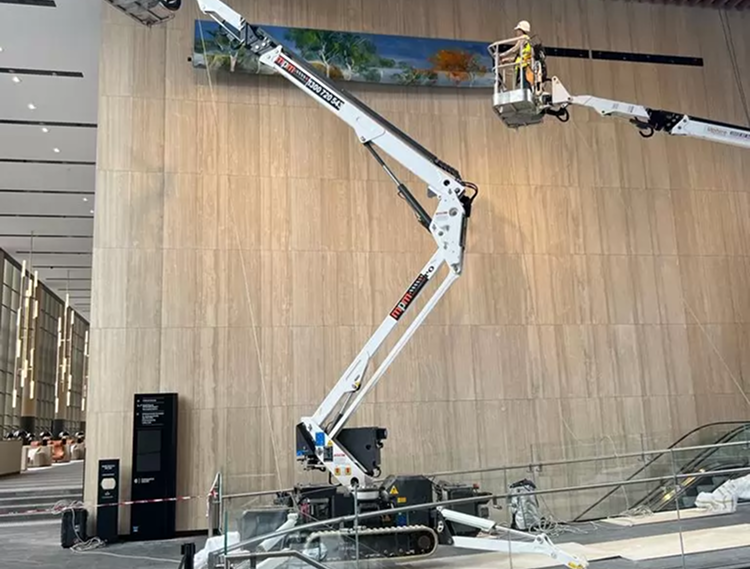

Arranging the hire and delivery of multiple spider EWPs with floor protection to safeguard the foyer during access and works.

Designed, installed and certified Sayfa AP118 raised concrete anchorage points for lifting and hauling operations.

Coordinated all parties during the lifting and installation process working alongside specialist technicians to mount the tapestry.

Planned and executed rigging and hauling logistics, including the manufacture of a custom central beam to support the tapestry during lifting.

Carried out lifting operations using Actsafe ACX powered ascenders for controlled positioning from ground level.

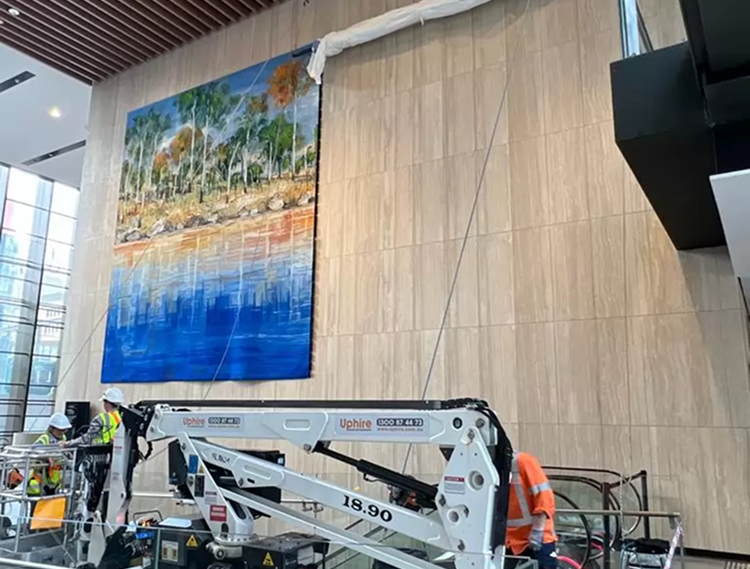

Lifted the 300kg tapestry in two 150kg sections and assisted with the final installation and joining of the pieces to achieve the desired result.

See the Work

Timelapse: shared by Walker Corporation
